What is the Difference Between Dynamic and Static Imbalance?

There is a good reason why rotating parts need to be balanced prior to use. An imbalanced part, being rotated at speed, causes unwanted vibration that increases proportionally as the square of the rpm of the rotor increases. (Doubling the rpm produces four times greater force of imbalance) This vibration will likely shorten the lifespan of the part, as well as the other components around it. On top of the possibility of damage or even catastrophic failure, this can also cause an excessive amount of noise, making it harmful to the hearing of those around it. In order to achieve better operation, longer service life, and not having to fix or replace mating parts you need to make sure that these rotating parts are balanced within their particular tolerance.


What is imbalance?

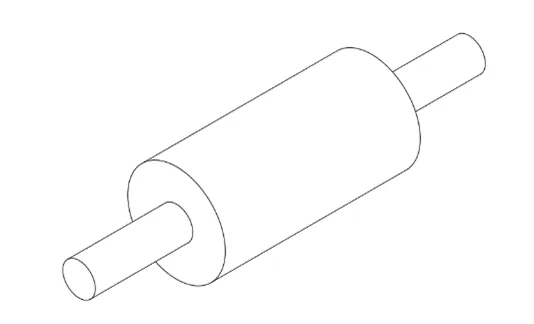

Before understanding the difference between static and dynamic balancing and imbalance, you must first understand what imbalance is with respect to rotating bodies. Imbalance is the misalignment of the center of mass from its axis of rotation. Imagine a cylindrical rotor. Its nominal shape would consist of a large cylinder in the center with two smaller cylindrical shafts protruding from each end. Each of these sections is perfectly concentric.

Imbalance - probal Dynamic Balancing

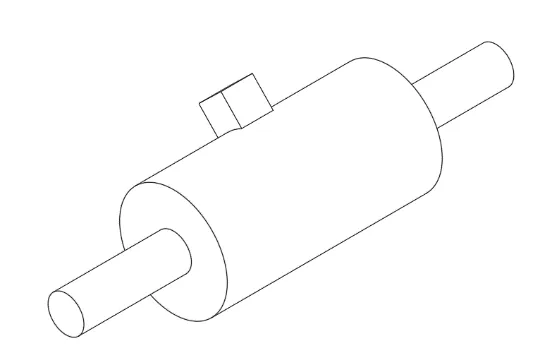

Now, if you were to add a large piece of material to the outside of the cylinder in one place you would be changing that rotor’s center of gravity. There would be more mass in the location of the added material than there would be anywhere else along the cylinder.

Imbalance - Dynamic Balancing Machine

If you were to now rotate that rotor along its axis of rotation down the center of the cylinder you would have excess centrifugal force in the area of the added mass. This would cause the rotor to want to pull away in the direction of said mass, causing vibration as it rotates. This is your imbalance. In order to bring the part back into balance you must either offset that material 180 degrees from it in the same plane of rotation, cancelling out the added centrifugal force, or remove the material causing the shift in center of gravity. Either way, you want to return the center of gravity back in line with the center of rotation.

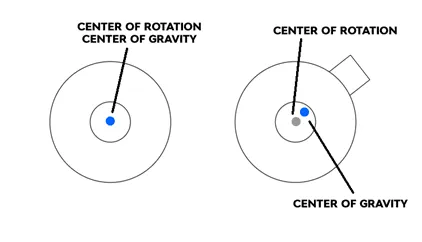

Center of Gravity - Probal Dynamic Balancing

Static Imbalance

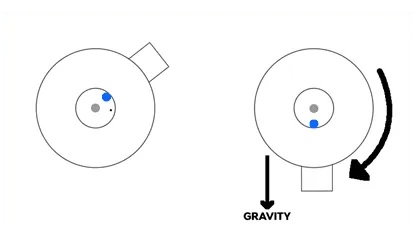

In “static” imbalance, only gravity or weight force is involved. Static Imbalance is essentially a heavy spot at a point outside of the center of rotation of the rotor. It is called static because it is present even when the part is not rotating. If the rotor is placed on frictionless rollers or “knife edges” and a weight is applied at the center-of-gravity line (between the two ends), the weighted portion, acted upon by gravitational force, would immediately roll to the bottom. This would be the heavy part of the rotor being pulled down by gravity until the heavy spot is at the bottom. You can see a part’s static imbalance on a balancing machine by setting it on the bearings and letting the heavy part rotate downward just using gravity. Static imbalance can be corrected with single plane balancing. Balancing the rotor, without rotation, may be accomplished provided the rotor is a narrow, inflexible type.

Static Imbalance - Probal Dynamic Balancing

Dynamic Imbalance

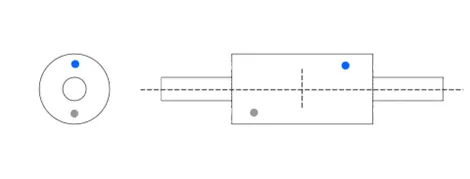

Some balancing machine manufacturers refer to “dynamic” imbalance as any type of rotating imbalance, but technically speaking, dynamic imbalance is strictly a “couple” caused by two equal forces in two separate planes, 180 degrees opposite each other.

Dynamic Imbalancing - Probal Dynamic Balancing

Assume the rotor is placed on frictionless rollers. Because each weight is 180 degrees opposite each other, no one point would roll to the bottom, since this rotor is balanced statically. If this same rotor is revolved to an appreciable speed, each weight would cause a centrifugal force which, being in separate planes, would cause a rocking motion tending to displace the rotor. The direction of the rocking motion would change as the location of the weights changed during their rotation about the rotor shaft. This type of unbalance is called pure dynamic unbalance.

To observe this action, place a pencil on a table and push with one finger in one direction, as you push with another finger in another plane in the opposite direction. The pencil will tend to rotate “end-for-end”. This action is restricted in a rotating rotor by the bearings that hold the rotor in one plane – however, this tendency to turn “end-for-end” is still present and it is this force which causes the rotor to vibrate.

Combined Static and Dynamic Imbalance

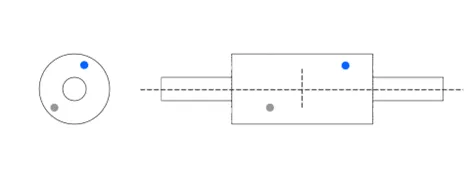

Rarely does pure dynamic or static imbalance occur. More often, parts tend to have a number of imbalances throughout their composition, at different planes along its axis of rotation. Imagine a heavy spot one inch from the left end of the cylinder at the top (relative to the machine operator) and another heavy spot one inch from the right end, but toward the bottom. Because of these “heavy spots” the part will try to pull the rotor in the direction of their respective centrifugal forces. This is also referred to as “couple.” Dynamic imbalance can only be determined while the part is rotating.

Combined Static and Dynamic Imbalance - Probal Dynamic Balancing

This asymmetric distribution of mass about the axis of rotation causes vibration when the part is rotating. It is this vibration which is measured by sensors on our dynamic balancing machines and sent to the ProBal data acquisition board to be turned into useful data for the computer to display. The ProBal system of balancing separates these forces into their component parts; dynamic couple and static force. The computer then gives you the location and amount of imbalance to be corrected. The advantage of separating static and dynamic in balancing is that the operator can make his corrections in any plane he desires. Often the operator may choose a plane of correction but finds after finding the angle of the imbalance that he could make his correction easier in some plane other than that originally chosen. This is done by either adding or removing material in the correction planes to realign the center of mass with the center of rotation. When achieved, this should eliminate the excess centrifugal forces and lessen the unwanted vibration.

ProBal Dynamic Balancing has a long history of making the process of balancing rotating parts faster and simpler. Our balancing software is arguably the most user-friendly in the industry. All the information needed to find and correct dynamic and static imbalance is displayed for you with easy-to-understand graphics and simple to adjust settings to make sure the calculations accurately reflect reality on the machine. Our system drastically cuts setup time, as well as having a sample time in mere seconds. Our goal was to give the operator an easier time making corrections and less time needed to interpret the data.

To learn more about why owning one of ProBal’s Dynamic Balancing machines will help your company to become more productive and efficient visit our machine information pages or contact us to see how we can best put together a turn-key solution for your balancing needs.
