CRANKSHAFT BALANCING MACHINE
CRANKSHAFT BALANCING
The PB-L500 Crankshaft Balancing Machine is designed to measure, balance, and correct crankshaft unbalance for optimal performance. With a modular structure and loaded feature set, they can adapt to your changing needs over time.
When it comes to crankshaft balancing, ProBal Dynamic Balancing is not just an equipment choice, it's a commitment to excellence, innovation, and growth. Join us in setting new industry standards. Choose ProBal.
CRANKSHAFT BALANCING MACHINE PACKAGE
- 22inch Touch Screen Display
- Windows 10 Operating System
- Exclusive Overhead Drive System
- Crankshaft Balancing Accessory Kit

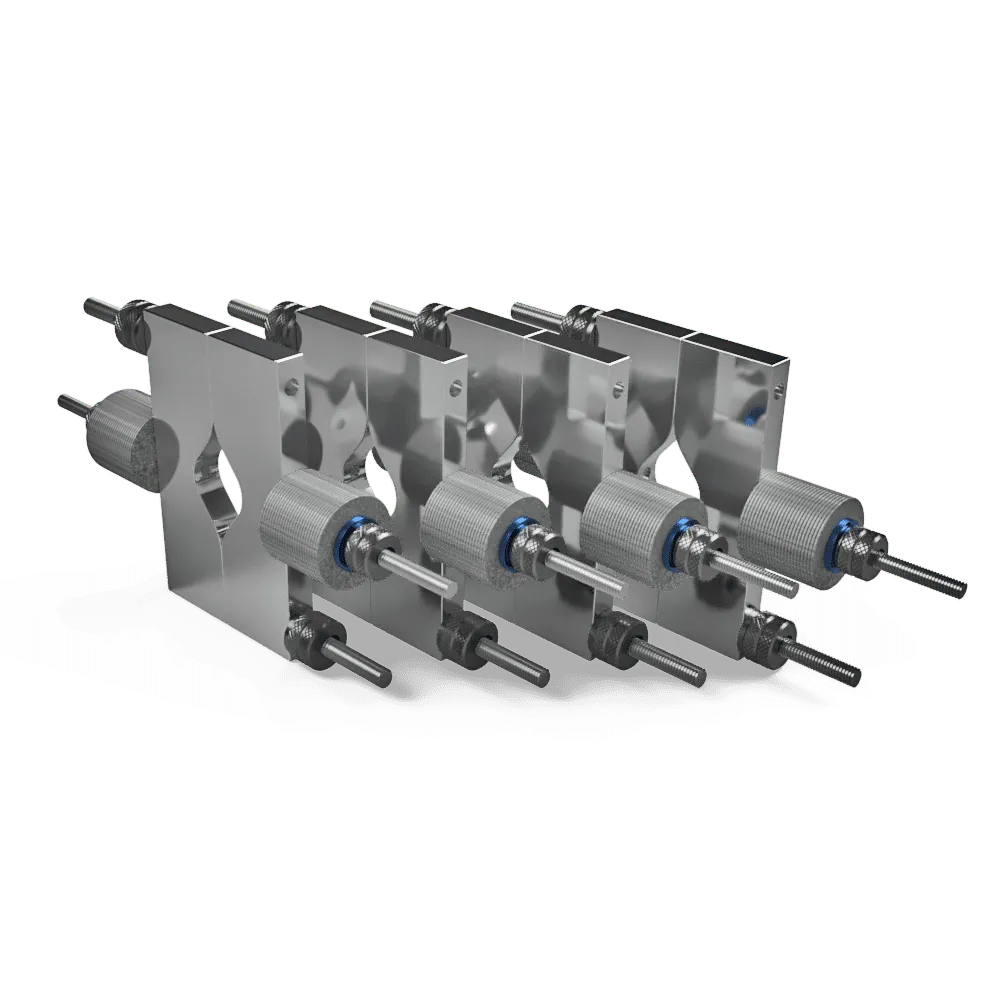

- Bobweights
- Rod Weighing Setup
- Digital Scale
- Gear Driven High Torque Drill Unit
- One Heavy Metal Drilling and Installation Stand
- Deluxe Tooling Package
- Spade Drill
- Reamer

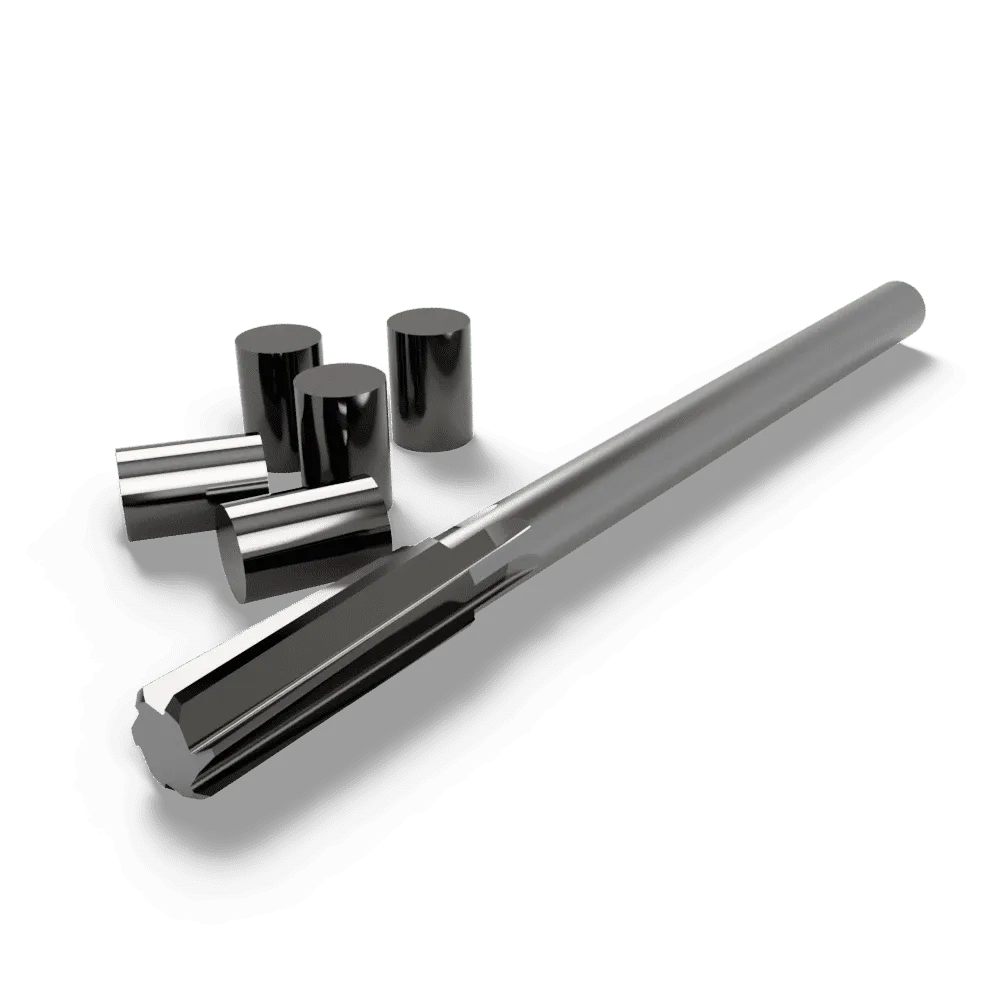

- Heavy Metal Starter Kit
- Precision Linear Rail on All Traversable Components
- Calibration Proving Rotor
PROCESS OF BALANCING A CRANKSHAFT
Balancing a crankshaft is an essential process in engine manufacturing and rebuilding. The crankshaft is a vital component of an engine, responsible for converting the reciprocating motion of the pistons into rotational motion. However, due to the nature of its operation, the crankshaft can generate vibrations and forces that can affect the overall performance and longevity of the engine. Therefore, it is crucial to properly balance the crankshaft to minimize these vibrations and ensure smooth operation.
The process of balancing a crankshaft involves carefully analyzing the weight distribution of the crankshaft and making adjustments to achieve a perfect balance. To begin with, the crankshaft is mounted on a balancing machine, which allows for precise measurements and calculations. The machine rotates the crankshaft at various speeds, while sensors detect any imbalances.
Once the initial measurements have been taken, the next step is to determine where weight needs to be added or removed from the crankshaft. This is done by either drilling or milling holes in specific areas or by adding weights to counterbalance the existing weight distribution. The objective is to achieve an equal weight distribution around the axis of rotation, minimizing any vibrations or forces that could negatively impact engine performance.
ACHIEVE PERFECT BALANCE WITH PRECISION AND EASE
At ProBal Dynamic Balancing, we prioritize quality and precision for your crankshaft balancing needs. Our machines are powered by the innovative Overhead Drive system, ensuring swift operations, complemented by the convenience of a Removable Stand for easy Heavy-Metal installation. The robust design incorporates Linear Rails on all traversable components, delivering unmatched rigidity and minimal deflection during drilling. Paired with our Gear Driven Drill Press, which offers immense torque, drilling becomes an effortless task.
Beyond exceptional functionality, ProBal guarantees affordability without compromising on quality. With state-of-the-art touch screen controls and a competitively priced model, we provide unmatched value. Choose ProBal Dynamic Balancing for excellence, innovation, and a commitment to setting new industry standards.
ADVANCED LINEAR GUIDEWAY TECHNOLOGY

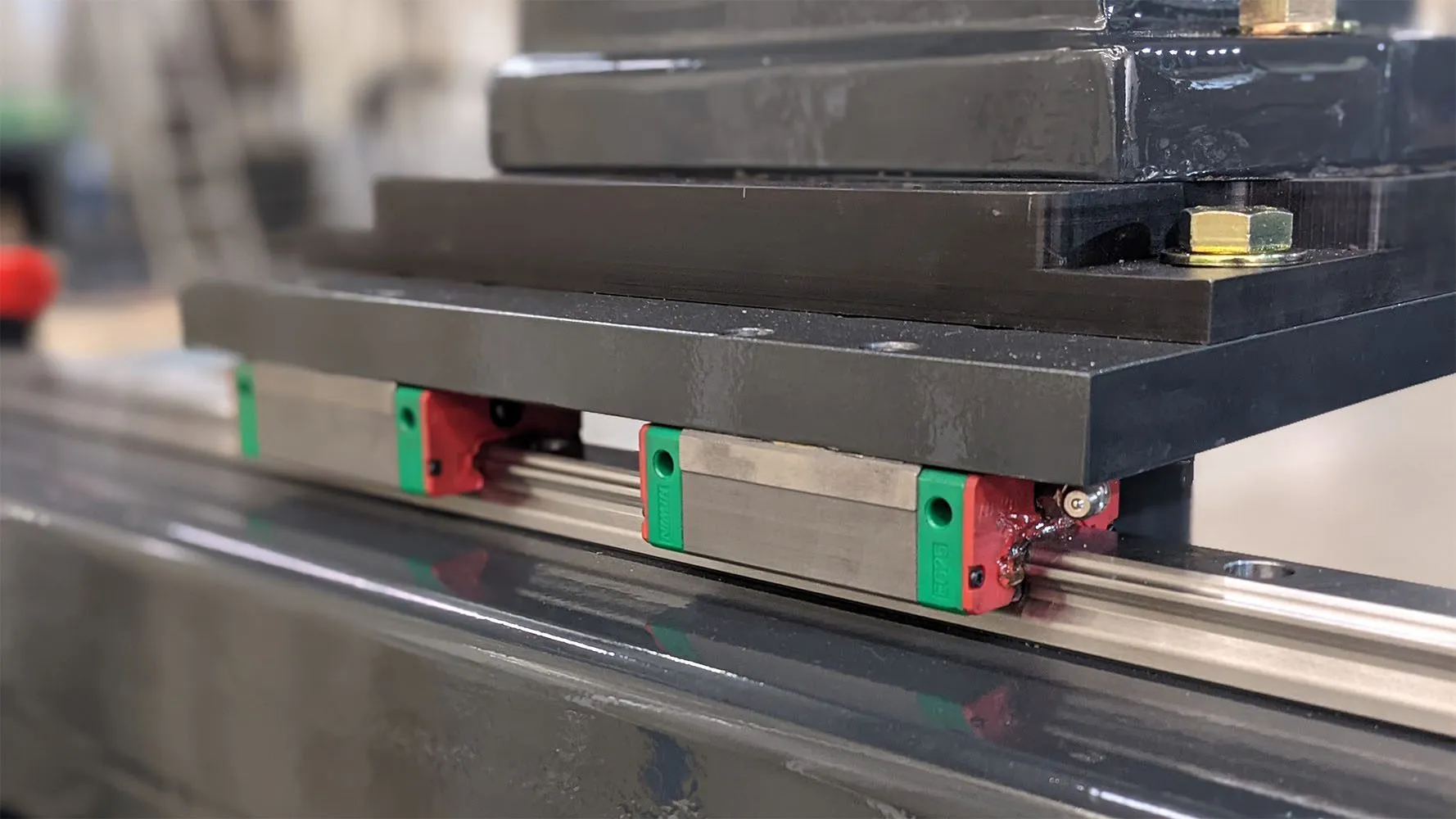

Precision linear guideways are incorporated into the traverse system for both the overhead drive and drilling system. No more round rails that have excessive clearance and flex. This technology allows us to set the standard for drill rigidity and effortless positioning for easy and very accurate corrections.
EXCLUSIVE DRIVE SYSTEM

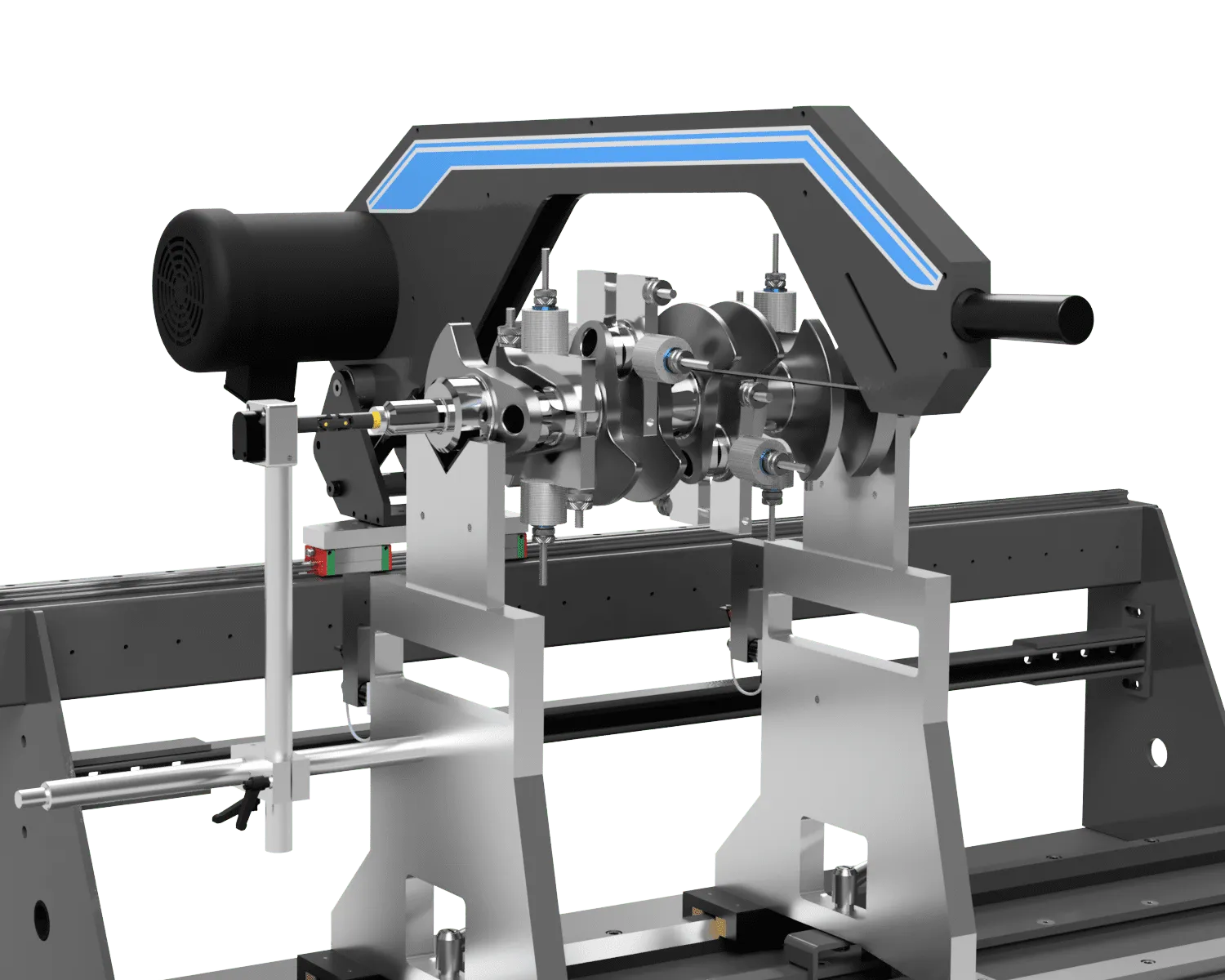

Our exclusive Overhead Drive System allows you to spin anywhere on the work-piece and rotates out of the way for easier loading and setup. This drive solution opens up the machine to balancing larger diameter parts with no surface on which to place a wrap around belt and also eliminates the need to have multiple belt lengths on hand for different size parts.
PROVING ROTOR INCLUDED!

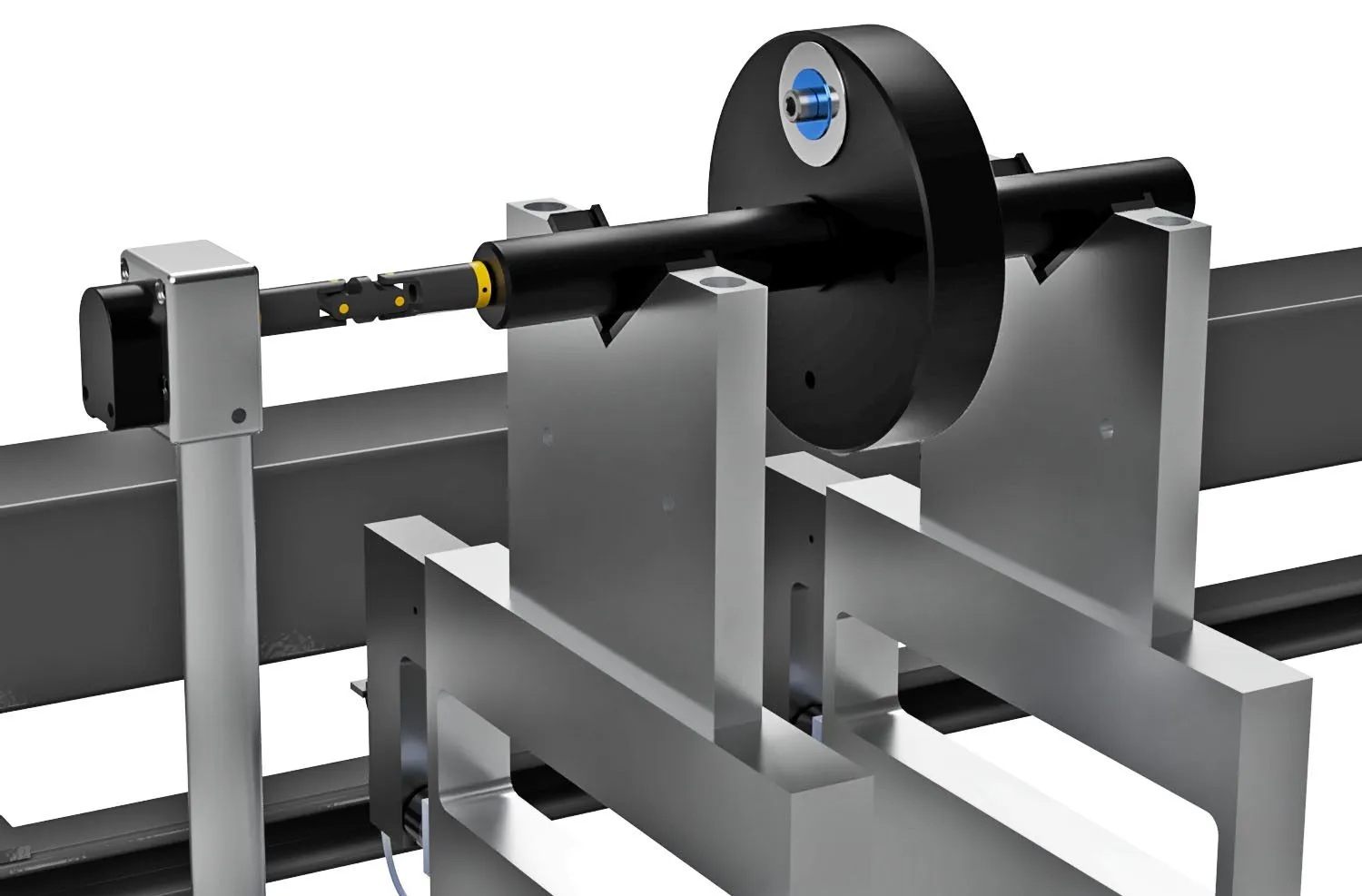

All ProBal Dynamic Balancing Machines include a suitable proving rotor matched to the machine size. This is to the benefit of both the customer and ProBal support technicians to quickly discern any performance issues over the life of the machine. Any time there is a measurement result that is questionable the customer will have the ability to mount the proving rotor and verify the calibration on the machine. It is our belief that any modern hard-bearing dynamic balancing machine should include a calibration verification tool in the same way a precision instrument will have an accompanying standard to measure against. Having your own tools to verify the accuracy of your machine will bring peace of mind for years and years.
GEARED DRILLING HEAD

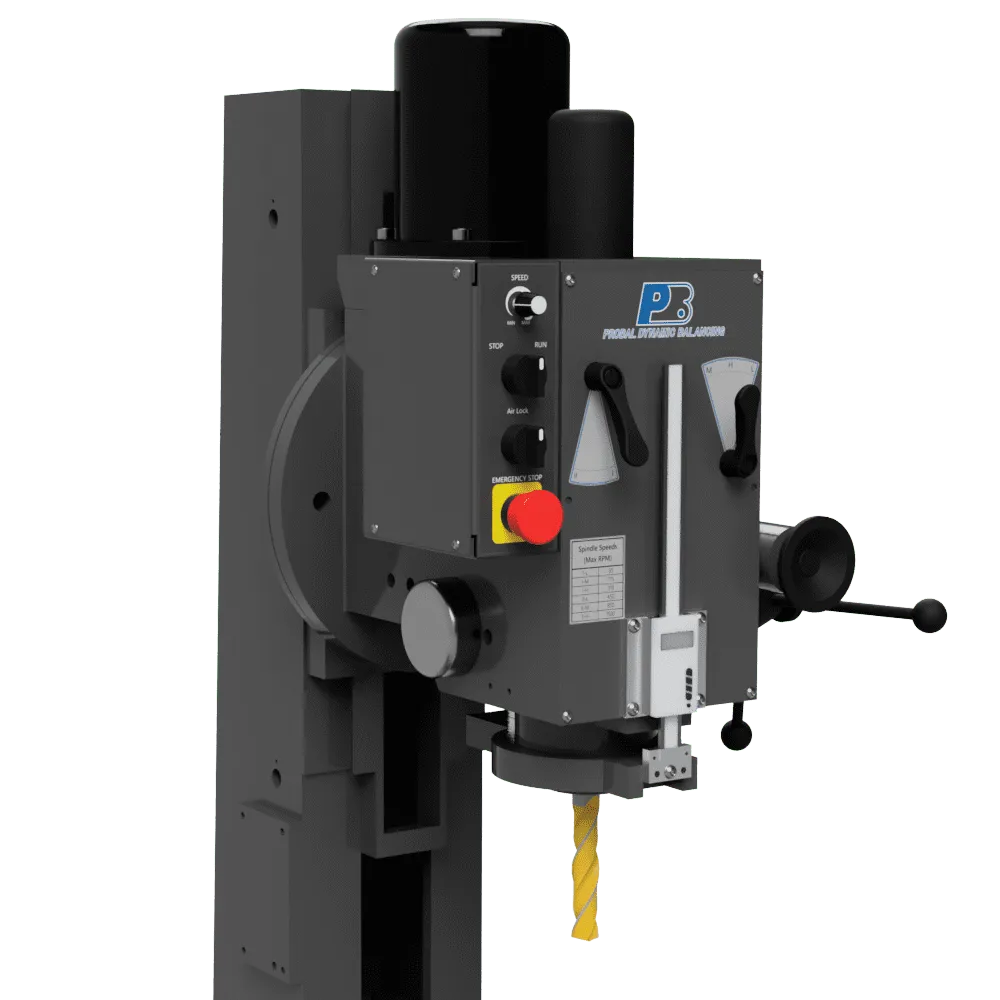

The gear-driven drill press delivers immense torque, making correction drilling effortless. Combined with the linear-rail traverse system, corrections are placed precisely where the software calls for them, without deflection or repositioning fuss.

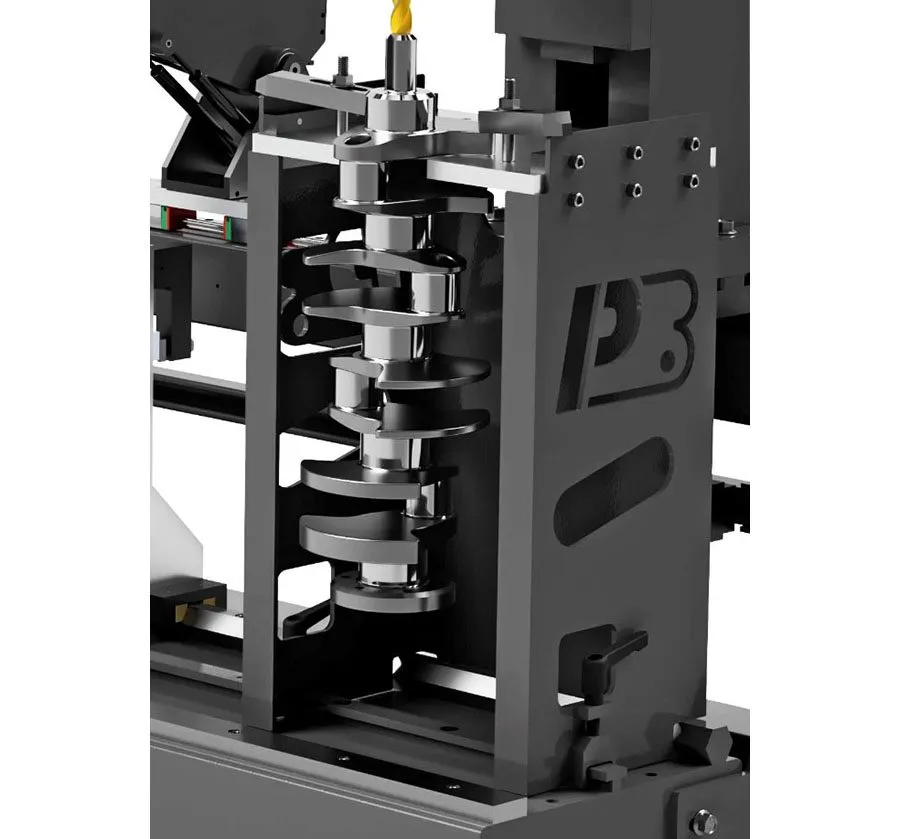

HEAVY METAL DRILLING STAND
Crafted from thick gauge steel, this stand ensures a robust and sturdy platform, allowing for precise drilling and the seamless installation of heavy metal into counterweights. Its durability guarantees consistency and accuracy, vital for the longevity and performance of crankshafts. By detaching the stand, users gain access to a generous 5 ft base, accommodating longer workpieces with ease.
CRANKSHAFT ACCESSORY KIT
Discover ProBal Dynamic Balancing's essential crankshaft tooling kit. Featuring a durable carbide-inserted spade drill tool and high-density heavy-metal pieces for precise adjustments. The kit also boasts a specialized reamer for impeccable finishes, a meticulously calibrated scale for measuring rods and bobweights, and a dedicated fixture for secure handling and accurate measurement of connecting rods.

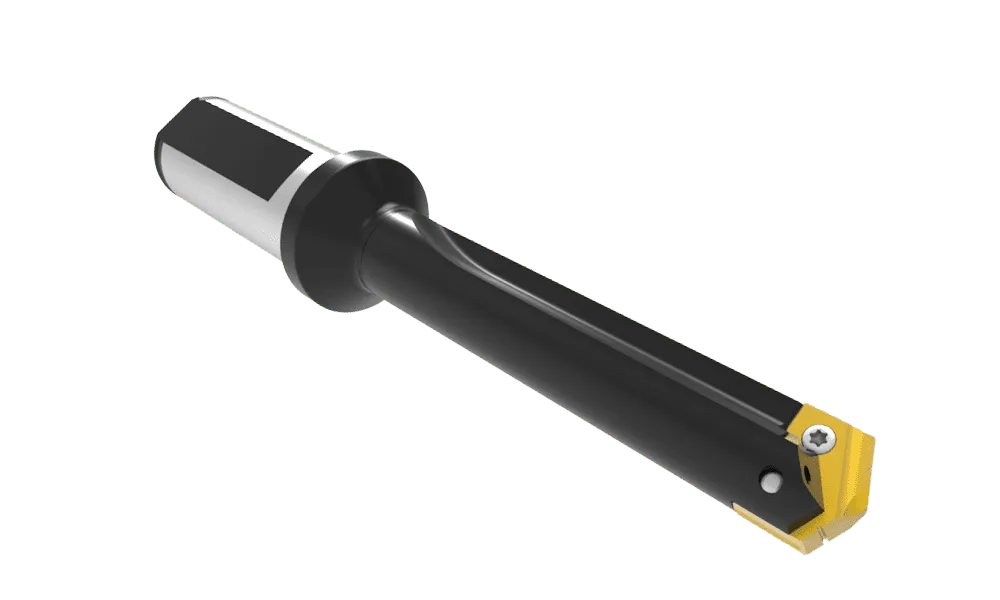

- Carbide Inserted Spade Drill
- Precision Gram Scale
- Carbide-Tipped Reamer
- 5 Precut Heavy Metal Slugs

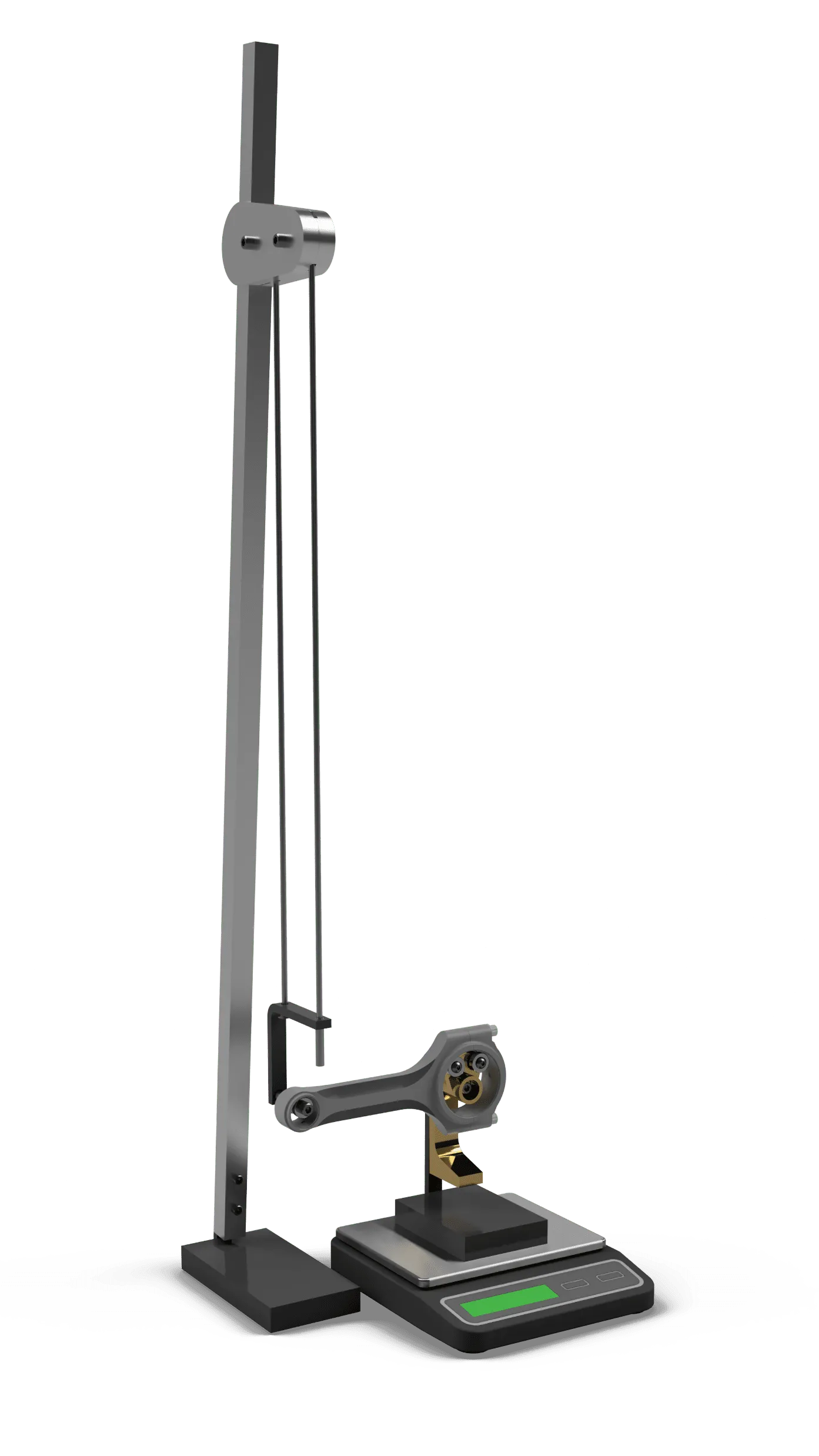

- Connecting Rod Weighing Fixture
OTHER APPLICATIONS
-
-
Flywheel balancing
the adjacent engine-balancing application.
-
Driveshaft balancing
for driveline work.
-
GET CRANKSHAFT BALANCING PRICING
Machines are purpose-built and custom-quoted. Tell us about your crankshaft work, from performance builds to production rebuilds, heavy-duty diesel, or powersports, and we will spec the right PB-L500 package.
