Demystifying Pump Impeller Imbalance: Causes, Effects, and Solutions

Pump performance can be influenced by several factors, one of which is pump impeller imbalance. This happens when the rotor’s mass distribution is misaligned, causing inefficient energy usage, subpar performance, and a reduced lifespan for the pump. This article will explore the origins of pump impeller imbalance, the balancing process, and other corrective measures of pump impeller.

Understanding Pump Impeller Imbalance

Pump impeller imbalance falls into two categories: single plane and two plane imbalances. Single plane imbalance, also known as static or force imbalance, is akin to a disc-shaped part with a weight attached to the edge. When lifted, the disc settles with the weight facing downwards, causing an imbalance during rotation. The center of mass shifts, which can lead to vibration and shaking.

Two plane imbalance, or couple imbalance, resembles an automobile wheel rim. Attaching a weight to one end of the cylinder and offsetting another weight by 180 degrees on the other end results in a two-plane imbalance. Lifting and rotating this weighted rim results in a complex wobble during rotation.

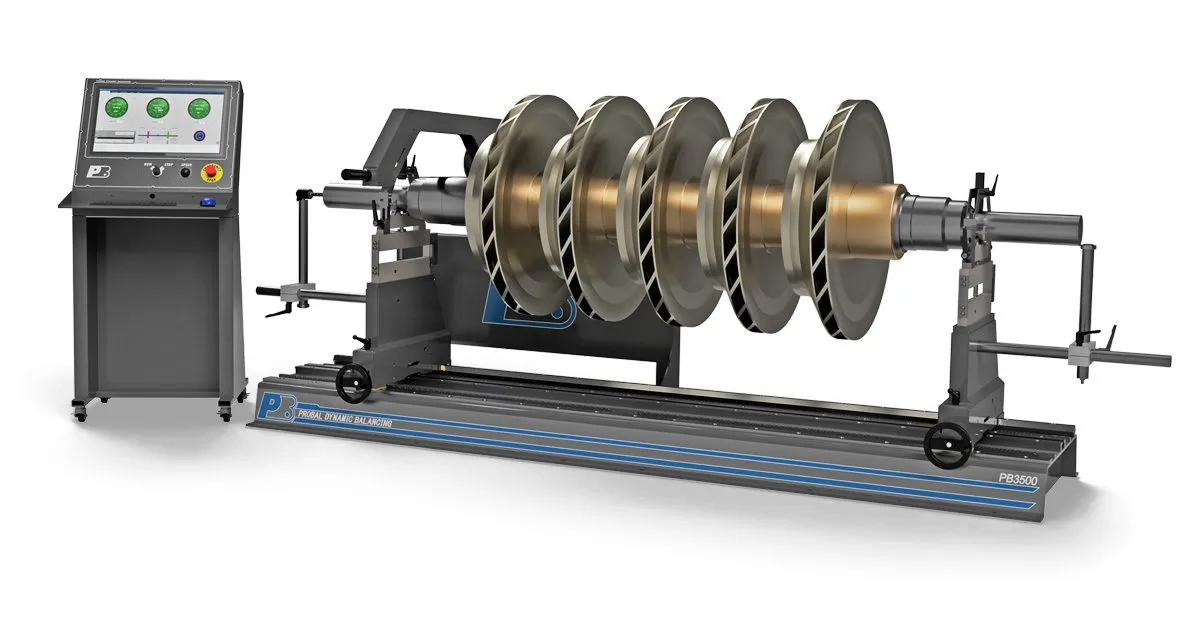

PBM-3500 Impeller Balancing Machine

Causes and Effects of Pump Impeller Imbalance

Pump impeller imbalance can result from various factors that disturb the uniform mass distribution of the impeller. It is crucial to identify these causes early to take corrective measures and maintain the pump’s efficiency. Some of the leading causes of pump impeller imbalance are:

1. Uneven Wear and Tear:

An impeller is subjected to intense stress and fluid friction during its operation. If the fluid contains abrasive materials, it can lead to uneven wear of the impeller surface, disrupting the balance. Regular inspection and maintenance can help in early detection and rectification of this wear.

2. Manufacturing Irregularities:

If there are irregularities in the manufacturing process, the impeller’s mass distribution may not be even from the start. Such irregularities could include inconsistencies in the casting process, imperfect machining, or even minor differences in material density.

3. Damage During Operation:

During operation, the impeller may suffer damage due to factors like collision with debris in the fluid, or sudden changes in speed or direction of rotation. Any deformation, however minor, can disrupt the balance of the impeller.

4. Bent Shaft:

The impeller is mounted on a shaft, and any bend in this shaft can cause significant imbalance. A bent shaft can result from various causes, including physical impact, operational stress, or improper handling during maintenance.

Identifying the root cause of the impeller imbalance is the first step in the balancing process. Only by addressing the specific cause can the balance be effectively restored, and the pump’s performance be optimized.

In situations where imbalance cannot be prevented, regular balance checks and corrective action are crucial. Probal Dynamic Balancing offers a range of advanced balancing machines to help maintain impeller balance and optimize pump performance.

Effects of Impeller Imbalance and Other Causes of Pump Vibration

While impeller imbalance can indeed contribute to pump vibration, it’s important to remember that it’s not the sole cause. Several other factors can also contribute to these issues and understanding them can provide a more comprehensive approach to vibration troubleshooting.

1. Soft Foot:

Soft foot occurs when all the feet of a machine do not sit evenly on the mounting surface. This can cause frame distortion and lead to internal misalignments which can result in excessive vibration.

2. Pipe Strain:

External forces applied to the pump casing by the piping system can cause misalignment between the pump and driver. Pipe strain can be a result of poor installation, improper support of the piping system, or thermal expansion, which can lead to pump vibration.

3. Misalignment:

This is a common cause of pump vibration and occurs when the pump and driver shafts are not in correct alignment. Misalignment can be due to several factors including improper installation, thermal changes, or even due to normal operation.

4. Bad Installation:

Faulty installation practices can also cause excessive pump vibration. This could include errors in leveling, grouting, pipe alignment, improper tightening of hold-down bolts, or insufficient clearance for thermal expansion.

5. Degrading Concrete Pads:

Over time, concrete pads that support the pump can degrade or crack, leading to an uneven mounting surface for the pump. This can cause soft foot and misalignment conditions that will result in vibration.

Each of these conditions, along with impeller imbalance, can contribute to overall pump vibration. It is critical to not only address the impeller balance but also to consider these other factors when performing vibration troubleshooting. By doing so, we can ensure comprehensive vibration control and optimal pump performance.

The Balancing Process

Achieving optimal balance involves adhering to specific guidelines set by the International Standards Organization (ISO) for various devices, including pump impellers. Traditionally, the ISO recommends a balance grade of G-6.3 for pump impellers. These standards provide detailed methods for calculating single plane and two plane imbalance tolerances based on the part’s weight and operating speed.

However, a growing trend within the pump manufacturing and remanufacturing industry is to aim for balance grades lower than G-6.3. This shift comes from a desire to confidently rule out imbalance as a cause of vibration, given the multitude of other factors that could contribute to it. While achieving grades as low as G-1.0 might not always be feasible or reasonable, striving for a grade closer to G-2.5 provides additional assurance. By delivering a report showing a balance well below G-6.3, these businesses can confidently confirm that imbalance is not contributing to any vibration issues once the pump is installed.

Assessing the imbalance of an impeller using a ProBal Dynamic Balancing machine involves a hands-on process incorporating cutting-edge technology. The impeller is carefully positioned on supports featuring roller bearings, which allow the assembly to spin freely within the machine. A belt, linked to the machine’s drive motor, is then attached to a designated drive point on the impeller. When the impeller is set into motion, ProBal’s precision sensors gauge the degree of imbalance at each point in the rotation. This data is captured by the ProBal software, which calculates the exact amount and location of the imbalance. These detailed readouts guide the operator who can grind, drill, or mill away material from the specified areas, providing a methodical, precise approach to optimizing the impeller’s balance and, in turn, its performance.

The Role of Experience in Balancing

Expertise plays a critical role in identifying the root cause of high vibration, including issues beyond balancing. Working with professionals who have a deep understanding of pump systems and vibration troubleshooting can ensure all potential issues are addressed for optimal pump performance.

Achieving optimal performance, energy efficiency, and a prolonged service life of your pump equipment heavily relies on properly balancing pump impellers. Following ISO guidelines for precision balancing and partnering with skilled professionals for assembly is crucial. Additionally, proactive identification and resolution of potential issues can prevent prolonged downtimes and ensure that your pump operates optimally.

At Probal Dynamic Balancing, we specialize in providing comprehensive solutions for your balancing needs. With our wide range of innovative and state-of-the-art balancing machines, including the PB-UL, PB-L, PB-M, and PB-H series, we’re prepared to handle rotors of various sizes and complexities.

If you’re experiencing pump imbalance issues or need assistance with your rotating equipment balancing needs, don’t hesitate to reach out to us. Our team of experienced sales engineers is ready to provide swift responses and creative solutions tailored to your unique requirements. With Probal Dynamic Balancing as your partner, you can be confident that your balancing requirements are in capable hands.
